Investigating Copy Number Variation Across KD Populations

1. Run through the 10x Cellranger pipeline and velocyto for single cell RNAseq quatification and using (2) guides quantifiction. all found in the cellranger files folder bash

2. Guide Calling for dual guide. Use repogle method to take molecule.h5 generated by cellranger and py to run through repogle version of guide calling or use cellranger_guidecalling.ipynb for Direct Capture Perturb-Seq dual guide. Formed guide-specific lists of cells.

3. Pseudobulk analysis. A. Seperation of guide-specific fastq files. bash B. Whippet pseudobulk for transcript specific analysis, post UMI deduplication. bash C. Transcript quality control. R D. Whippet result visualisation.

4. Normalisation of adata object and E-distance of KD

5. Check gene and neighboring gene expression

6. Create individual umaps per gene of interest A. UMAPs B. Rand Index score

7. Cell phase assignment model from FUCCI-matched single cell paper (GSE146773)

8. Differential Expression analysis. A. Find the shared P1 and P2 genes. B. Check the shared P1 and P2 across different protospacers with the same A/B and C/D.

9. CNV Score & Numbat to quantify and Velocity quantification with loom file

10. ESR1-specific analysis from proliferation analysis to rt-qpcr

11. Spectra analysis and visualisation for pathway enrichment

This script is dedicated to the chromosomal analysis part of the study. Specifically, it uses single-cell RNA sequencing (scRNA-seq) data to infer Copy Number Variations (CNVs)—large-scale chromosomal gains or losses—to understand how different promoter knockdowns impact genomic stability in breast cancer cells.

Inferring Chromosomal Changes from Gene Expression Since the study uses scRNA-seq rather than DNA sequencing, it employs a tool called inferCNV to estimate chromosomal changes.

What is happening: The code computes a rolling average of gene expression across genomic windows (typically 100 genes).

The Logic: If a large block of adjacent genes shows consistently higher or lower expression compared to a reference set, the model infers a chromosomal gain or loss in that region

%load_ext autoreload
%matplotlib inline
%autoreload 2

import sys
sys.path.append(loc)
from infercnvpy_test import *

#general
import scanpy as sc
import matplotlib.pyplot as pl
import anndata as ad
import pandas as pd
import numpy as np
import hdf5plugin

#form a location
loc="alt-prom-crispr-fiveprime/"

import seaborn as sns
from tqdm.notebook import tqdm
import scperturb
import sys
sys.path.append(loc+'scripts/')
from apu_analysis import *
import scperturb
import infercnvpy as cnv
from apu_analysis.cell_import import CellPopulation
from IPython.display import clear_output
pd.options.display.float_format = '{:.4f}'.format
import matplotlib.pyplot as plt
import scvelo as scv
from matplotlib_venn import venn3

#for this python
from scipy.special import rel_entr
import sklearn.cluster as cluster
import umap
from scipy import stats
from scipy.stats import bootstrap
import statsmodels.api as sm
from statsmodels.stats.multitest import multipletests
from numpy import reshape
from numpy import array
from sklearn.decomposition import PCA


# Taken from:
# Adamson, B.A., Norman, T.M., *et al.* "A multiplexed CRISPR screening platform enables systematic dissection of the unfolded protein response", *Cell*, 2016.
# My experiment deals with two KDs- one of the MP, one of the AP using two guides. Positve controls include GINS1 ect. This is a combnatorial KD double for the same gene. No treatments were used

# colours using garvan
color1 ='#4d00c7'
palecolor1="#b366ff"
color2= '#da3c07'
palecolor2="#ff8954"
color3='#05d3d3'
color4='#c6c7c5'
color4="#434541"
color5="#eb31e1"
color6="#3175eb"
color7="#a7eb31"
color8="#b366ff"
color9="#ff8954"
color10="#35c9d4"

#use viridis
color1="#fde725"
color2="#7ad151"
color3="#22a884"
color4="#2a788e"
color5="#2a788e"
color6='#440154'
# %%capture


# Create the color palette
palette = sns.color_palette([palecolor1,palecolor2])
palette2 = sns.color_palette([color1, color2, color3, color4,color5,color6 ,color7])

# Create the color palette
palette = sns.color_palette([color1, color2,color3])
new_palette = sns.color_palette([color1, color2,color1, color2,color1, color2,color1, color2,color1, color2,color1, color2, color3, color4])



print("Scanpy", sc.__version__)
%matplotlib inline

adata = ad.read_h5ad(loc+"files/adata_normalised.h5ad")
#set the log1p
# adata.X = adata.layers["raw"]
adata.X = adata.layers["counts"]

 #import and process the protein list
gene_list = pd.read_csv(loc+'files/reference/cellranger-GRCh38-1.2.0_only_genes.gtf',
            sep='\t',
            header=None,
            names=['chr', 'source', 'type', 'start', 'end', 'null1', 'orientation', 'null2', 'notes'])

gene_list = gene_list[['chr', 'source', 'type', 'start', 'end', 'orientation', 'notes']]
gene_list['gene_id'] = gene_list['notes'].map(lambda x: x.split('"')[1])

gene_list["notes"][0]

gene_list['gene_name'] = gene_list['notes'].map(lambda x: x.split('"')[7])
gene_list['gene_type'] = gene_list['notes'].map(lambda x: x.split('"')[5])

protein_gene_list = gene_list[gene_list['gene_type'] == "protein_coding"]
protein_gene_list = protein_gene_list[protein_gene_list["gene_name"].isin(list(adata.var_names))] ##subseet for the genes found in the signle cell matrix
protein_gene_list=protein_gene_list.groupby("gene_name").head(n=1)
protein_gene_list.reset_index(inplace=True,drop=True)
##add annotations for snv
#subset adata to only include the genes that are in the protein_gene_list
adata_ens=adata[:,adata.var.index.isin(protein_gene_list["gene_name"])]
adata_ens.var["ensg"]=pd.Categorical(protein_gene_list["gene_id"][protein_gene_list["gene_name"].isin(adata_ens.var.index)])
adata_ens.var["chromosome"]=pd.Categorical(protein_gene_list["chr"][protein_gene_list["gene_name"].isin(adata_ens.var.index)])
adata_ens.var["start"]=pd.Categorical(protein_gene_list["start"][protein_gene_list["gene_name"].isin(adata_ens.var.index)])
adata_ens.var["end"]=pd.Categorical(protein_gene_list["end"][protein_gene_list["gene_name"].isin(adata_ens.var.index)])

# Define file path
file_path = loc + 'files/reference/cellranger-GRCh38-1.2.0_only_genes.gtf'

# Import and process the protein list
gene_list = pd.read_csv(file_path, sep='\t', header=None,
                        names=['chr', 'source', 'type', 'start', 'end', 'null1', 'orientation', 'null2', 'notes'])

# Select necessary columns
gene_list = gene_list[['chr', 'source', 'type', 'start', 'end', 'orientation', 'notes']]

# Extract gene_id, gene_name, and gene_type from 'notes' column
gene_list['gene_id'] = gene_list['notes'].apply(lambda x: x.split('"')[1])
gene_list['gene_name'] = gene_list['notes'].apply(lambda x: x.split('"')[7])
gene_list['gene_type'] = gene_list['notes'].apply(lambda x: x.split('"')[5])

# Filter for protein coding genes
protein_gene_list = gene_list[gene_list['gene_type'] == "protein_coding"]

# Subset for the genes found in the single cell matrix
protein_gene_list = protein_gene_list[protein_gene_list["gene_name"].isin(list(adata.var_names))]

# Group by gene_name and keep first entry
protein_gene_list = protein_gene_list.groupby("gene_name").first().reset_index()

# Subset adata to only include the genes that are in the protein_gene_list
adata_ens = adata[:, ((adata.var.index.isin(protein_gene_list["gene_name"])&(adata.var['mt']==False)))]
# adata_ens = adata

adata_ens.var=adata_ens.var.merge(protein_gene_list,right_on="gene_name",left_index=True).set_index('gene_name')
#change column names from in dictionary_columns
dictionary_columns={"ensg":"gene_id","chr":"chromosome","start":"start","end":"end"}
adata_ens.var.rename(columns=dictionary_columns,inplace=True)

sc.tl.umap(adata_ens)
###iterate through and create correlation matrix

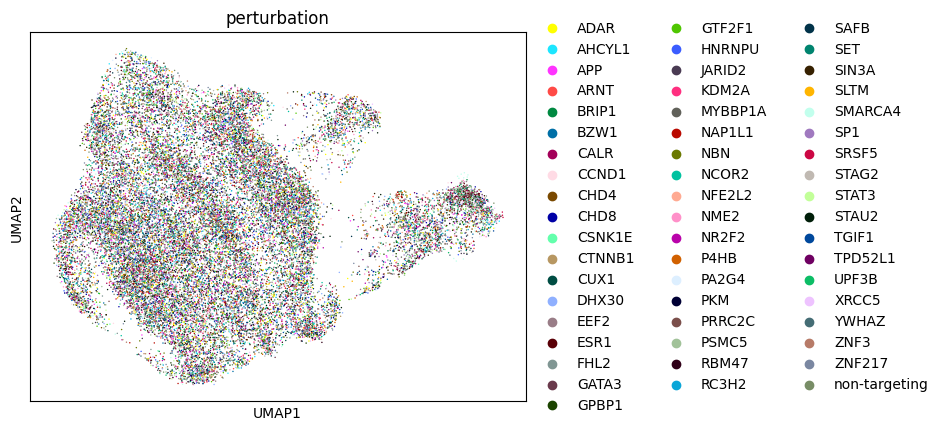

sc.pl.umap(adata_ens, color="perturbation")

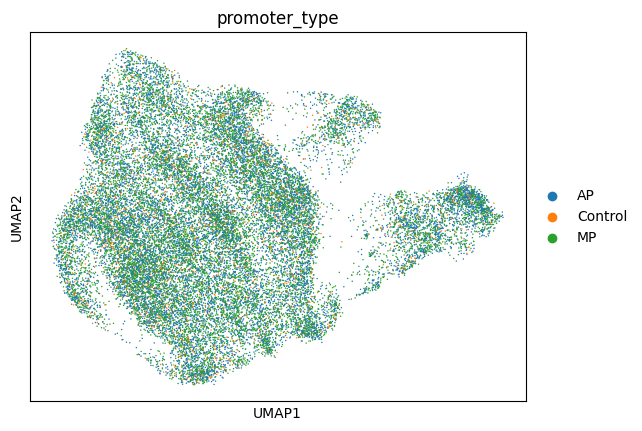

sc.pl.umap(adata_ens, color="promoter_type")

... storing 'chromosome' as categorical
... storing 'source' as categorical
... storing 'type' as categorical
... storing 'orientation' as categorical
... storing 'gene_type' as categorical

#check that the gtf contains genes that were contained
gencode_peaks_gtf_esr1=loc+"files/reference/remap2022_ESR1_nr_macs2_hg38_v1_0.mcf7.gencode.gtf"
#subset select for genes of interest
gencode_peaks_gtf_esr1=pd.read_csv(gencode_peaks_gtf_esr1, sep="\t",header=None)
#check that the gtf contains genes that were contained
gencode_peaks_gtf_ar=loc+"files/reference/GSE48930.AR.MCF-7.gencode.gtf"
#subset select for genes of interest
gencode_peaks_gtf_ar=pd.read_csv(gencode_peaks_gtf_ar, sep="\t",header=None)

#get list of genes that arre in adata_ens
adata_gene_names=adata_ens.var_names
#get the names of androgen
esr1_targeted_gene_names=gencode_peaks_gtf_esr1[3].drop_duplicates()
#interection of the two lists
esr1_adata_targeted_genelist=list(set(adata_gene_names).intersection(esr1_targeted_gene_names))
print(len(esr1_adata_targeted_genelist))
esr1_adata=adata_ens[:,adata_ens.var_names.isin(esr1_adata_targeted_genelist)]
#match the genes selected for new_not to be similarly expressed
min_esr1_value=esr1_adata.var.means.min()
#subset the genes that have the mean expression value greater than the min_esr1_value and not included in esr1_adata_targeted_genelist
esr1_not_in_gene_names=adata_ens.var_names[(adata_ens.var.means>min_esr1_value) & (~adata_ens.var_names.isin(esr1_adata_targeted_genelist))]
print(len(esr1_not_in_gene_names))

#input esr1_adata_min
esr1_adata_notin=adata_ens[:,adata_ens.var_names.isin(esr1_not_in_gene_names)]

144
11081

#form two dataframes ar_adata and ar_adata_notin
ar_targeted_gene_names=gencode_peaks_gtf_ar[3].drop_duplicates()
#interection of the two lists
ar_adata_targeted_genelist=list(set(adata_gene_names).intersection(ar_targeted_gene_names))
#remove all genes that are in er_targeted_gene_names
ar_adata_targeted_genelist=list(set(ar_adata_targeted_genelist)-set(esr1_adata_targeted_genelist))
print(len(ar_adata_targeted_genelist))
ar_adata=adata_ens[:,adata_ens.var_names.isin(ar_adata_targeted_genelist)]

#match the genes selected for new_not to be similarly expressed
min_ar_value=ar_adata.var.means.min()
#subset the genes that have the mean expression value greater than the min_esr1_value and not included in esr1_adata_targeted_genelist
ar_not_in_gene_names=adata_ens.var_names[(adata_ens.var.means>min_ar_value) & (~adata_ens.var_names.isin(ar_adata_targeted_genelist))]
print(len(ar_not_in_gene_names))

#input esr1_adata_min
ar_adata_notin=adata_ens[:,adata_ens.var_names.isin(ar_not_in_gene_names)]

52
10917

#only the
venn3([set(esr1_adata_targeted_genelist), set(adata_gene_names),set(ar_adata_targeted_genelist) ], ('ESR1', 'All Genes', 'AR'))
plt.show()

#need to repeat the calculation 6 times
#once for esr1 only
esr1_not_int=esr1_adata_notin[(esr1_adata_notin.obs["promoter_type"] == "Control") | (esr1_adata_notin.obs["perturbation"] == "ESR1")]
esr1=esr1_adata[(esr1_adata.obs["promoter_type"] == "Control") | (esr1_adata.obs["perturbation"] == "ESR1")]
ar_not_in=ar_adata_notin[(ar_adata_notin.obs["promoter_type"] == "Control") | (ar_adata_notin.obs["perturbation"] == "ESR1")]
ar=ar_adata[(ar_adata.obs["promoter_type"] == "Control") | (ar_adata.obs["perturbation"] == "ESR1")]
esr1_full=adata_ens[(adata_ens.obs["promoter_type"] == "Control") | (adata_ens.obs["perturbation"] == "ESR1")]

esr1_full=esr1_full[:,~esr1_full.var["chromosome"].isin(["chrX","chrY"])]

# #window size is the size of the running window (so the number of genes to iunclude)
# #step means the computong the number of window

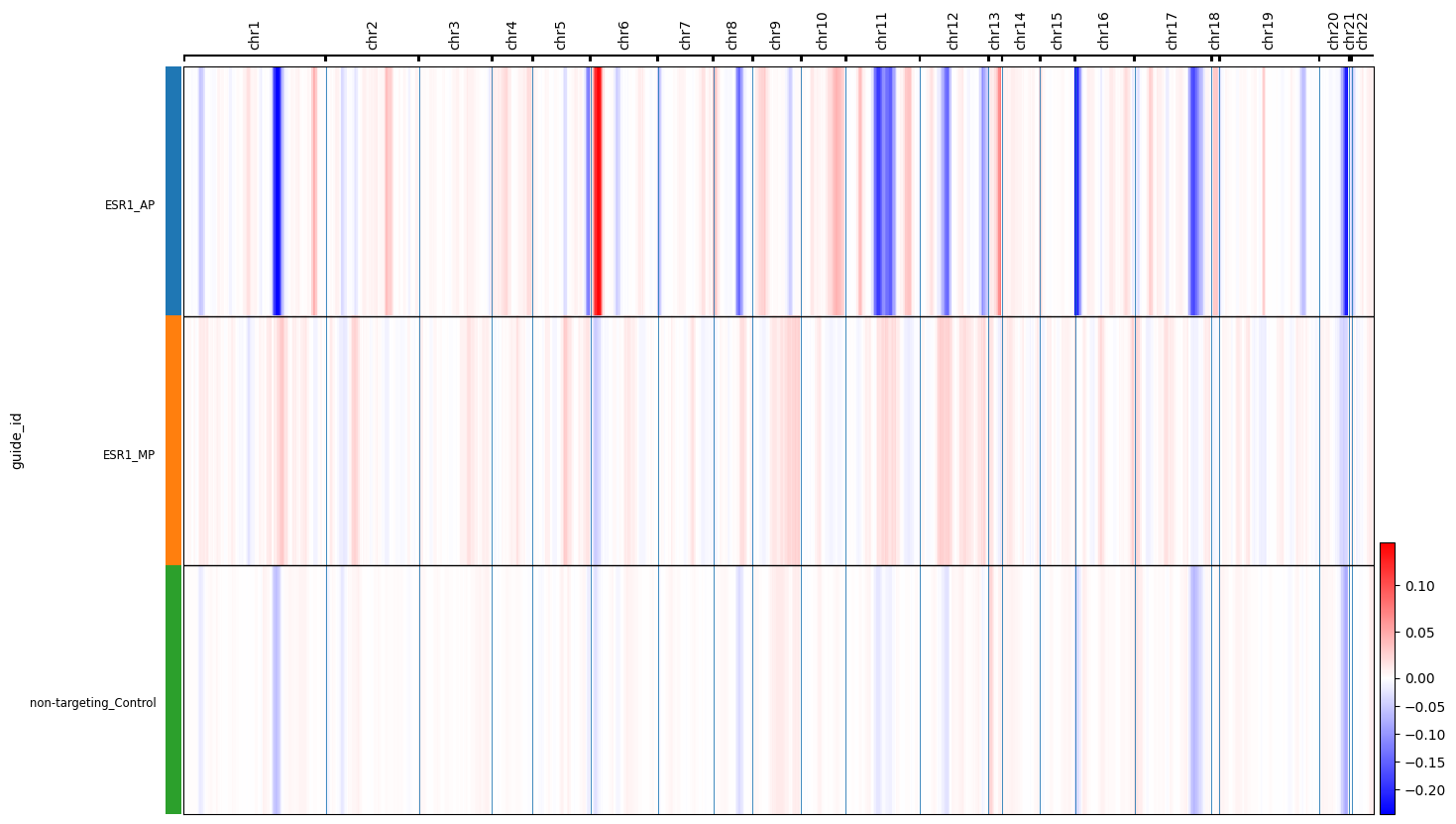

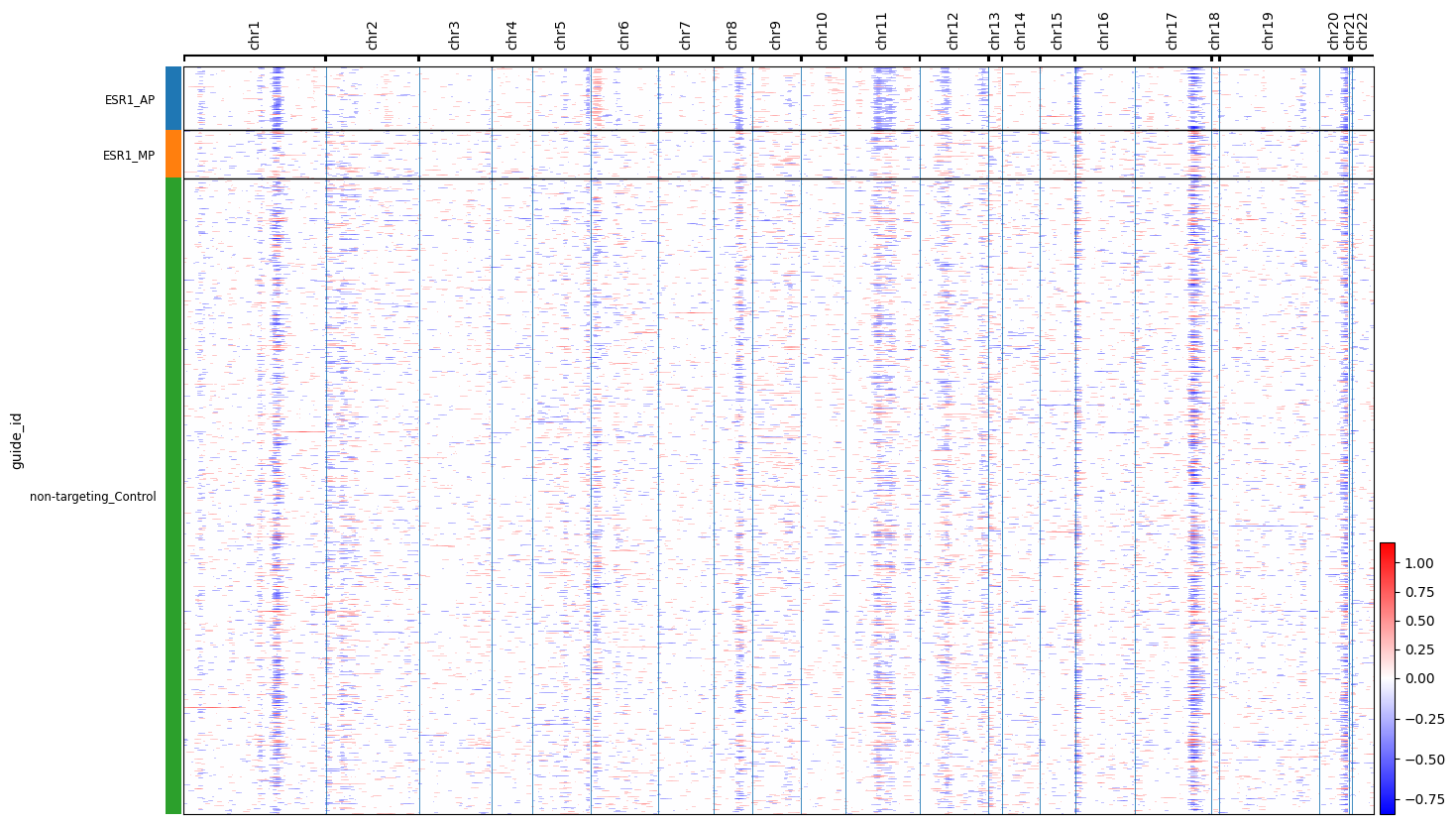

chr_pos, res, df,full_gene_df = tl.infercnv(
esr1_full,
reference_key="guide_id",
reference_cat="non-targeting_Control",
window_size=1,
inplace=False,
step=1,
calculate_gene_values=True
)
#merge test with  esr1_full.obs
full_gene_df=pd.merge(esr1_full.obs[["guide_id","guide_assignment","perturbation"]],full_gene_df,left_index=True,right_index=True)
full_gene_df_mean=full_gene_df.drop(["guide_assignment","perturbation"],axis=1).groupby(["guide_id"]).agg({'mean'}).transpose().sort_values(by="ESR1_AP",ascending=False)
#add the gene info from the adata_ens.var
full_gene_df_mean=full_gene_df_mean.reset_index()
# full_gene_df_mean
full_gene_df_mean.columns=[ "gene_id","metric", "ESR1_AP","ESR1_MP","non-targeting_Control"]
full_gene_df_mean=full_gene_df_mean.merge(adata_ens.var[["chromosome","start","end","gene_id","orientation","notes"]],left_on="gene_id",right_index=True).drop("gene_id_x",axis=1).rename(columns={"gene_id_y":"ensembl_id"})
full_gene_df_mean.to_csv(loc+"files/cnv_mean_score_esr1.csv")

100%|██████████| 1/1 [01:30<00:00, 90.50s/it]

check

#input df
cnv_score_list=[]
c=0
df_list=[esr1_not_int,esr1,ar_not_in,ar,esr1_full]
elements_list=["F","T","F","T","None"]
binding_regions_list=["esr1","esr1","ar","ar","non_targeting"]
for c in range(0,5):
    df=df_list[c]
    cnv.tl.infercnv(
        df,
        reference_key="guide_id",
        reference_cat="non-targeting_Control",
        window_size=1,
        step=1,
    )
    cnv.pp.neighbors(df)
    cnv.tl.leiden(df)
    #check the input df name is esr1
    cnv.tl.cnv_score(df)
    cnv_score=pd.DataFrame(df.obs[["cnv_score","perturbation","promoter_type"]])
    cnv_score["elements"]=elements_list[c]
    cnv_score["binding_regions"]=binding_regions_list[c]
    #add the dataframe esr1 cnv_score_list
    cnv_score_list.append(cnv_score)
    #plot binding regions esr1 and elements list T



#concatenate the dataframes
cnv_score_df=pd.concat(cnv_score_list)
#need to make a graph which shows x-axis the cnv score and y-axis score
#export cnv_score to csv

cnv_score_df.to_csv(loc+"files/singlecell_shortread_analysis/cnv_score.csv")

100%|██████████| 1/1 [00:03<00:00,  3.87s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters

  File "/Users/helenking/anaconda3/envs/apu/lib/python3.12/site-packages/joblib/externals/loky/backend/context.py", line 270, in _count_physical_cores
    cpu_info = subprocess.run(
               ^^^^^^^^^^^^^^^
  File "/Users/helenking/anaconda3/envs/apu/lib/python3.12/subprocess.py", line 548, in run
    with Popen(*popenargs, **kwargs) as process:
         ^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/Users/helenking/anaconda3/envs/apu/lib/python3.12/subprocess.py", line 1026, in __init__
    self._execute_child(args, executable, preexec_fn, close_fds,
  File "/Users/helenking/anaconda3/envs/apu/lib/python3.12/subprocess.py", line 1955, in _execute_child
    raise child_exception_type(errno_num, err_msg, err_filename)
OMP: Info #276: omp_set_nested routine deprecated, please use omp_set_max_active_levels instead.
100%|██████████| 1/1 [00:01<00:00,  1.94s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters

100%|██████████| 1/1 [00:03<00:00,  3.37s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters

100%|██████████| 1/1 [00:01<00:00,  1.63s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters

100%|██████████| 1/1 [00:03<00:00,  3.36s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters

#for every perturbation of interest
adata_gene=adata_ens.obs["perturbation"].unique()
#only extract perturbations which contain P1 or P2
cnv_score_list_total=[]
for gene_pos in range(0,len(adata_gene)):
# for gene_pos in range(0,2):
    gene=adata_gene[gene_pos]
    print(gene)
    if gene in ["non-targeting"]:
        continue
    #subset the adata to only include the gene of interest
    df=adata_ens[(adata_ens.obs["perturbation"]==gene)|(adata_ens.obs["perturbation"]=="non-targeting")]
    print(df.shape)
    cnv.tl.infercnv(
        df,
        reference_key="guide_id",
        reference_cat="non-targeting_Control",
        window_size=1,
        step=1,

    )
    cnv.pp.neighbors(df)
    cnv.tl.leiden(df)
    cnv.tl.cnv_score(df)
    cnv_score=pd.DataFrame(df.obs[["cnv_score","perturbation","promoter_type"]])
    #add the dataframe esr1 cnv_score_list
    cnv_score_list_total.append(cnv_score)

NBN
(2812, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.86s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
PA2G4
(2738, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.76s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
PKM
(2763, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.70s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
SIN3A
(3020, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.91s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
non-targeting
SP1
(2885, 11266)

100%|██████████| 1/1 [00:04<00:00,  4.19s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
FHL2
(2808, 11266)

100%|██████████| 1/1 [00:04<00:00,  4.07s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
AHCYL1
(2753, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.84s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
CHD4
(2745, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.89s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
CUX1
(2773, 11266)

100%|██████████| 1/1 [00:05<00:00,  5.35s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
XRCC5
(2759, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.97s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
PRRC2C
(2731, 11266)

100%|██████████| 1/1 [00:05<00:00,  5.29s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
CALR
(2847, 11266)

100%|██████████| 1/1 [00:04<00:00,  4.23s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
GATA3
(2670, 11266)

100%|██████████| 1/1 [00:04<00:00,  4.11s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
ESR1
(2691, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.95s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
CHD8
(2778, 11266)

100%|██████████| 1/1 [00:04<00:00,  4.35s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
SMARCA4
(2980, 11266)

100%|██████████| 1/1 [00:04<00:00,  4.70s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
APP
(2700, 11266)

100%|██████████| 1/1 [00:04<00:00,  4.47s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
JARID2
(2695, 11266)

100%|██████████| 1/1 [00:04<00:00,  4.73s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
KDM2A
(2664, 11266)

100%|██████████| 1/1 [00:04<00:00,  4.17s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
MYBBP1A
(2784, 11266)

100%|██████████| 1/1 [00:04<00:00,  4.58s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
STAT3
(2946, 11266)

100%|██████████| 1/1 [00:04<00:00,  4.35s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
NAP1L1
(2735, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.74s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
SRSF5
(2749, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.84s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
STAG2
(2811, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.78s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
SAFB
(2709, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.72s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
SET
(2899, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.81s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
HNRNPU
(2724, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.69s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
NME2
(2769, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.96s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
ZNF217
(2790, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.70s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
NCOR2
(2776, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.67s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
TGIF1
(2805, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.82s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
DHX30
(2793, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.84s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
BRIP1
(2775, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.75s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
GPBP1
(2811, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.81s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
NR2F2
(2726, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.72s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
YWHAZ
(2936, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.75s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
STAU2
(2812, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.74s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
ADAR
(2892, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.77s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
BZW1
(2859, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.87s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
ARNT
(2553, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.66s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
CTNNB1
(2833, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.78s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
CCND1
(2655, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.78s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
GTF2F1
(2657, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.82s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
CSNK1E
(2478, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.98s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
ZNF3
(2709, 11266)

100%|██████████| 1/1 [00:04<00:00,  4.54s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
TPD52L1
(2754, 11266)

100%|██████████| 1/1 [00:04<00:00,  4.04s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
PSMC5
(2828, 11266)

100%|██████████| 1/1 [00:04<00:00,  4.19s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
EEF2
(2780, 11266)

100%|██████████| 1/1 [00:04<00:00,  4.15s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
NFE2L2
(2658, 11266)

100%|██████████| 1/1 [00:03<00:00,  3.78s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
SLTM
(2725, 11266)

100%|██████████| 1/1 [00:04<00:00,  4.05s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
UPF3B
(2618, 11266)

100%|██████████| 1/1 [00:04<00:00,  4.21s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
RBM47
(2672, 11266)

100%|██████████| 1/1 [00:04<00:00,  4.51s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
RC3H2
(2707, 11266)

100%|██████████| 1/1 [00:04<00:00,  4.59s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters
P4HB
(2759, 11266)

100%|██████████| 1/1 [00:05<00:00,  5.83s/it]

WARNING: X_cnv_pca not found in adata.obsm. Computing PCA with default parameters

Identifying Promoter-Specific Genomic Instability A major biological finding in the paper is that different promoters of the same gene can have vastly different effects on genomic integrity.

The ESR1 Discovery: The notebook compares CNV scores between the P1 and P2 knockdowns of the estrogen receptor gene (ESR1).

Result Found: Knocking down the P2 promoter of ESR1 led to a significant increase in CNVs among cell cycle-related genes compared to P1 and control populations (\(p < 1.1 \times 10^{-7}\))77.

Statistical Validation of CNV Differences To ensure these inferred changes are statistically robust, the notebook applies several tests:

Wilcoxon Rank Sum Test: Used to determine if the distribution of CNV scores in P2-knockdown cells is significantly higher than in P1 or NTC (Non-Targeting Control) cells.

Effect Size Calculation: The code calculates metrics like Cliff’s delta and Vargha and Delaney’s A to quantify the magnitude of the difference in genomic instability between the different promoter-targeted populations

cnv.tl.infercnv(
    esr1_full,
    reference_key="guide_id",
    reference_cat="non-targeting_Control",

)
cnv.pp.neighbors(esr1_full)
cnv.tl.leiden(esr1_full)
cnv.tl.cnv_score(esr1_full)
cnv.pl.chromosome_heatmap(esr1_full, groupby="guide_id")
cnv.pl.chromosome_heatmap_summary(esr1_full, groupby="guide_id",save="esr1_full.pdf")

100%|██████████| 1/1 [00:02<00:00,  2.77s/it]

... storing 'guide_id' as categorical

WARNING: saving figure to file figures/heatmapesr1_full.pdf

cnv.pl.chromosome_heatmap(esr1_full, groupby="guide_id")
cnv.pl.chromosome_heatmap_summary(esr1_full, groupby="guide_id",save="esr1_full.pdf")

... storing 'guide_id' as categorical

WARNING: saving figure to file figures/heatmapesr1_full.pdf

#need to make a graph which shows x-axis the cnv score and y-axis score
#export cnv_score to csv
cnv_score_df=pd.concat(cnv_score_list_total)

cnv_score_df.to_csv(loc+"files/singlecell_shortread_analysis/cnv_score_allgene.csv")
